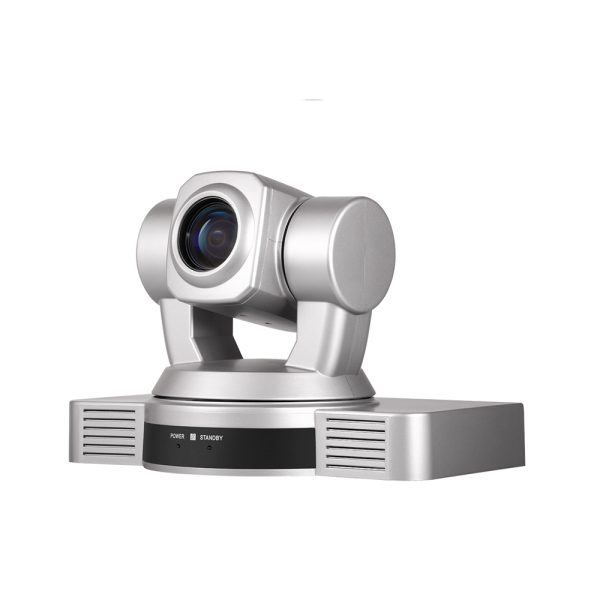

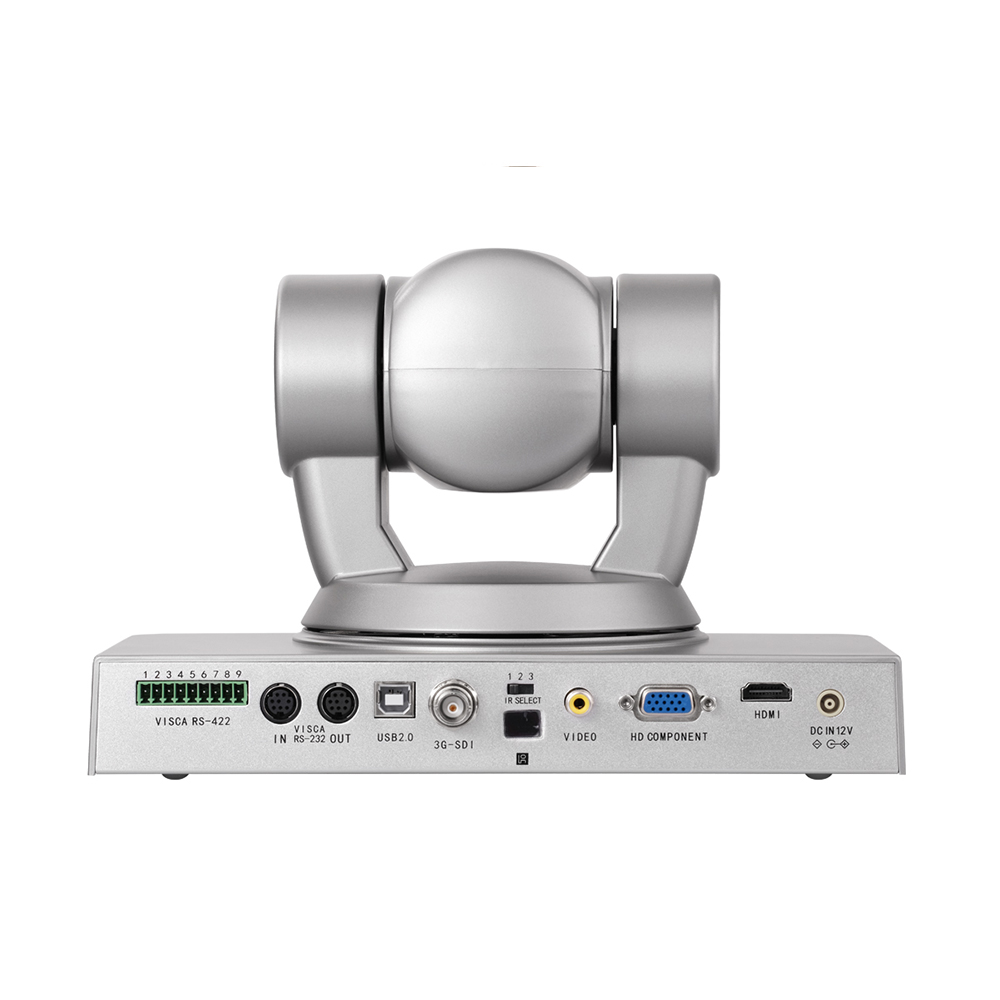

Professional Conference Camera TDEV09

  • Imaging equipment: 1/2.8CMOSCCD ;effective pixels 3.3 million 1080P; Lens 20x optical zoom;10x digital zoom Focal length f=4.7mm—94.0mm ;
  • Horizontal viewing : angle 2.9-55 Video output HD VIDEO, Y/Pb/Pr, HD-SD1;HDMI (DVI optional) Pan/tilt angle 360 degrees (pan), 180 degrees (tilt) Pan/tilt speed 0.1-180 degrees (pan)/sec/0.1-120 degrees (tilt) ;
  • Minimum illumination 12LUX/F1.1.8 Signal to noise ratio >50 dB Shutter speed 1/2 to 1/10,000 s Gain automatic/manual;
  • White balance: automatic, manual, indoor, outdoor, ATW, one-touch white balance;
  • Preset positioning 128 position programming Camera control interface RS-232C (VISCA protocol) / RS-422 (VISCA protocol) / PELCO: P/D AE control automatic, manual, priority mode, brightness;
  • EV compensation, backlight compensation, Slow AE EV compensation -10.5~10.5dB (1.5dB per file) Signal system HD 1080p, /50, 1080p/59.94,24,25,29,97,<, /SPAN>720p/59.94,720p/50 SD NTSC (Crop/Squeeze), PAL (Crop/Squeeze)

The requirements of modern society for meetings are not only limited to simple sound needs, but also require video backup recording or remote transmission. This system can simultaneously realize the linkage of speech and photography, so as to achieve automatic tracking and positioning camera function.In addition, it can also be set up with software to set the camera point, and can also be separated from the computer to set the camera point, enhancing the flexibility of use and cost savings. High-speed cloud ball tracking of all speakers in the last open microphone position, when the last open microphone closed, the cloud ball automatically return to the preset point, when all speakers listed and closed, the cloud ball automatically reset to the standby position.When off the computer, the camera position can be preset through the host panel keys.
